Experience next-generation resin 3D printing with theAnycubic Photon Mono 4 Ultra LCD 3D Printer engineered for unmatched accuracy, speed, and reliability. Whether youre creating detailed jewelry models, printing dental prototypes, or developing intricate miniatures, this high-resolution printer is built to deliver professional-grade results consistently.
Protomont Technologies, a trusted 3D printing company in India, proudly brings you this advanced printer as part of our curated range of high-performance 3D printing solutions.
Key Features of Anycubic Photon Mono 4 Ultra
1.10K Monochrome LCD for Ultra-Fine Detailing
Equipped with a 7-inch 10K monochrome screen (9024 5120 pixels) and 17m pixel size, the Photon Mono 4 Ultra offers sharp precision and refined textures. This makes it ideal for applications requiring high detail, such asjewelry design, dental models, figurines, and medical prototypes.

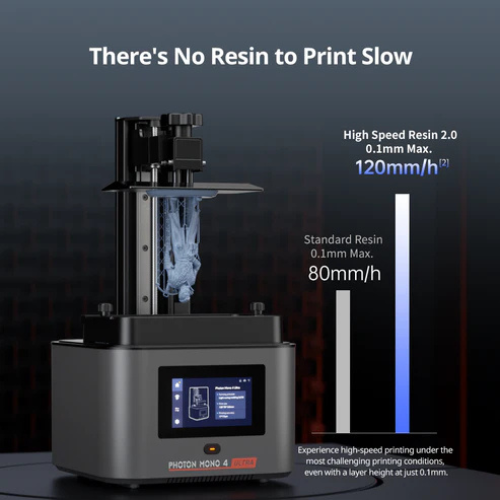

2.High-Speed Resin Printing Up to 120mm/h
Thanks to its intelligent release mechanism and compatibility withAnycubic High Speed Resin 2.0, this printer achieves faster print speeds without compromising quality. Reduce your project time while maintaining excellent resolution and layer bonding.
3.Advanced LightTurbo Technology for Even Curing
The built-in COB light source and Fresnel lens system ensure uniform UV light distribution, resulting insmooth, clean, and artifact-free prints. Whether printing large surfaces or intricate geometries, the light uniformity ensures dimensional accuracy across the build platform.
4.Smart 360 Monitoring System
The printer includes a self-diagnostic monitoring system that checks for common issues such as:
-
Print failures
-
Resin levels
-
Residual resin on the build plate
-
Release film wear
-
System health
These intelligent alerts help prevent downtime, protect your equipment, and minimize print failuresmaking it highly reliable for consistent output.
5.Optimized Build Volume for Versatility
With a build area of 153.4 x 87 x 165mm and 2.2L resin capacity, the Photon Mono 4 Ultra accommodates medium to large prints with intricate details. The laser-engraved build plate enhances adhesion and simplifies part removal.

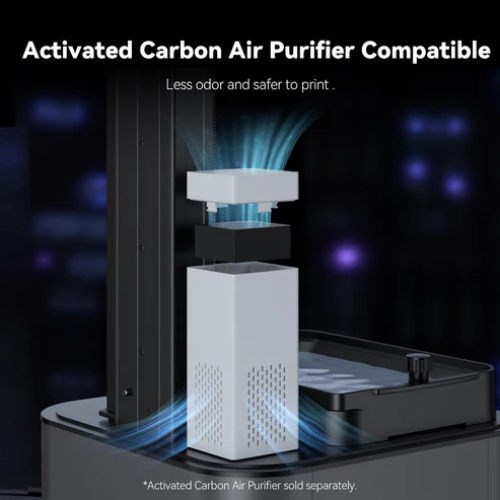

6.Optional Activated Carbon Air Purifier
To reduce resin odors, the printer supports anoptional activated carbon air purifier, making it perfect for desktop environments like studios, classrooms, or homes.
Compatible Resins for Anycubic Photon Mono 4 Ultra
This LCD 3D printer works with all405nm UV-sensitive resins, including:
-
Anycubic High Speed Resin 2.0:For fast, accurate prints
-
Anycubic Texture Resin:Great for detailed surface textures
-
Anycubic Bio Resin:Eco-conscious and skin-friendly
-
Filamont Resin:Reliable and tested in Indian conditions
-
Elegoo Standard & ABS-like Resin
-
Phrozen Aqua, Siraya Tech, Esun, and more
This wide compatibility ensures Indian users have access to quality and affordable resin options for different printing needs.
Applications of the Anycubic Photon Mono 4 Ultra
Ideal for a wide range of professional and creative uses, including:
-
Miniatures & Figurines:Exceptional detail for collectibles and models
-
Jewelry Prototypes:Precision for casting and master molds
-
Dental Models:Clinical accuracy for orthodontic and prosthetic modeling
-
Functional Prototypes:Fast and reliable for product design and testing
-
Educational Use:STEM labs, innovation hubs, and training centers
-
Art & Sculpture:Print complex, high-resolution artistic designs
Anycubic Photon Mono 4 vs Photon Mono 4 Ultra
| Feature | Anycubic Photon Mono 4 Ultra | Anycubic Photon Mono 4 |
|---|---|---|
| Printer Model | Photon Mono 4 Ultra | Photon Mono 4 |
| Build Volume | 153.4mm 87mm 165mm | 153.4mm 87mm 165mm |
| Product Dimensions | 231mm 236mm 430mm | 230mm 235mm 391mm |
| Packaging Dimensions | 512mm 300mm 305mm | 480mm 300mm 300mm |
| Net Weight | 5 kg | 4 kg |
| Printing Speed (Standard Resin) | Up to 80mm/h (0.1mm layer) | 50mm/h (0.1mm layer) |
| Printing Speed (High-Speed Resin) | Up to 120mm/h (0.1mm layer) | 70mm/h (0.1mm layer) |
| Layer Height Range | 0.02 0.15 mm | 0.03 0.15 mm |
| LCD Screen | 7-inch Mono LCD | 7-inch Mono LCD |
| Printing Resolution | 10K (9024 5120) | 10K (9024 5120) |
| X/Y Axis Resolution | 17m 17m | 17m 17m |
| Light Source | COB Light Source + Fresnel Lens + Uniformity Algorithm | Upgraded Parallel Matrix |
| Light Uniformity | 90% | 80% 90% |
| Light Intensity | 3500W/cm | 3000W/cm |
| Release Film Type | ACF | FEP |
| Full-Stage Intelligent Assisted Printing | Yes | No |
| Display Screen | 4.3 TFT Touch | 2.8 TFT Touch |
| Anycubic App Support | Yes | No |
| Machine Leveling | 4-Point Manual Leveling | 4-Point Manual Leveling |
| Air Purifier Compatibility | Optional (USB-powered) | Optional (Rechargeable) |
| File Transfer Options | USB, WiFi, LAN (Q4 Update) | USB Only |
| Slicing Software | Photon Workshop | Photon Workshop |
Why Buy from Protomont Technologies Your Trusted Source in India
As anofficial Anycubic distributor in India, Protomont Technologies ensures:
-
100% genuine product with the latest model
-
Official Anycubic warranty and after-sales support
-
Expert setup guidance and technical consultation
-
India-wide insured delivery to cities like Mumbai, Delhi, Bengaluru, and more
-
Support for Filamont and other compatible resins available locally
Buy the Anycubic Photon Mono 4 Ultra LCD 3D Printer Online in India
Looking for a powerful, high-resolutionresin 3D printer in India? TheAnycubic Photon Mono 4 Ultraoffers the perfect balance of speed, quality, and smart features for professionals and hobbyists alike.
Order online fromProtomont Technologies, Indias leading 3D printing company and Anycubic distributor, and take your creative projects to the next level with confidence.
Order Now Unleash the Power of 10K Resin Printing
Upgrade your printing workflow today. With ultra-high resolution, intelligent features, and professional-grade build quality, theAnycubic Photon Mono 4 Ultra LCD 3D Printeris one of thebest resin 3D printers in Indiafor serious makers, engineers, designers, and educators.
